K-Care

Easyup

EASYUP ELEKTRO

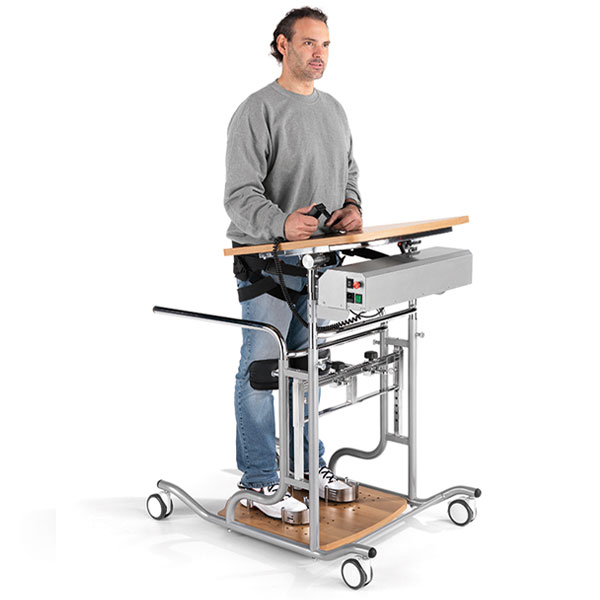

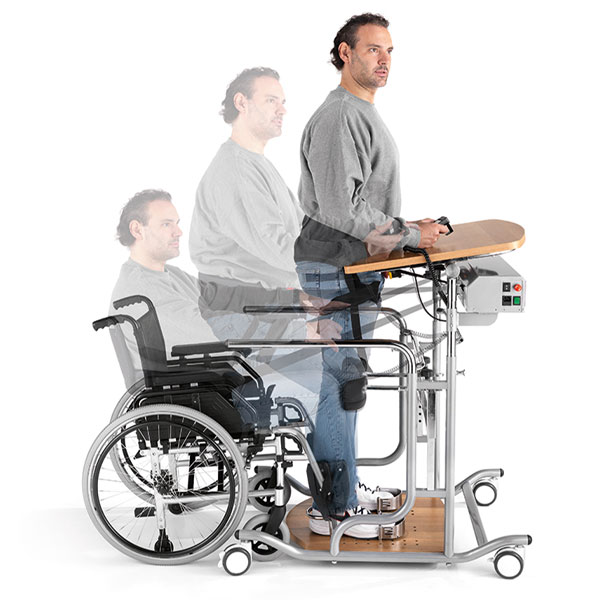

Adjustable size from medium to large for adults. Supporting frame with double columns of telescopic sliding for the independent height adjustment of the handrest rails and the table. Varnished with polyester and epoxypolyester powders. Base complete with 4 twin and pivoting wheels D.100 mm for the transfer. Wooden platform in walnut finish with holes for fixing the heel stopperand the foot stopper. Wooden table in walnut finish adjustable in height, antero-posterior depth and inclination. Electric group for moving up and down the lift strap. Motor 230V-300W and with electronic control board. Complete with wired push-button panel and power cable. Stroke-end user anterior button. Additional integrated button to control the ascent and descent. Emergency button. Emergency stop button. Table height adjustment assisted by gas springs. Max weight capacity 125 Kg.
Code ISO 04.48.21.012 + 04.48.91.030 + 04.48.91.039
Previous DPCM reference:
Code ISO 03.48.21.036 + 03.48.21.106 + 03.48.21.112 x2 +
12.24.03.157 + 03.48.21.121
CND Y1299 – RDM 2269390

Download product sheet Contact us
